Revolving Door System

BLASI develops and fabricates automatic door systems with creativity, precision and experience. With architects, metalworking experts and construction companies from all over the world. With individuality, quality, innovative spirit and close co-operation, which are our core values.

Our priority is to produce made-to-measure products, modified to suit individual architectural requirements. This enables us to produce a practically unlimited range of designs.

Automatic door systems are developed and manufactured exclusively by BLASI at their factory in Germany, using high-tech manufacturing methods, individual craftsmanship and a great deal of know-how. In the age of globalisation, definitely not something to be taken for granted. Only perfect control over both development and production processes produces results that satisfy the highest standards of quality.

Types of Product

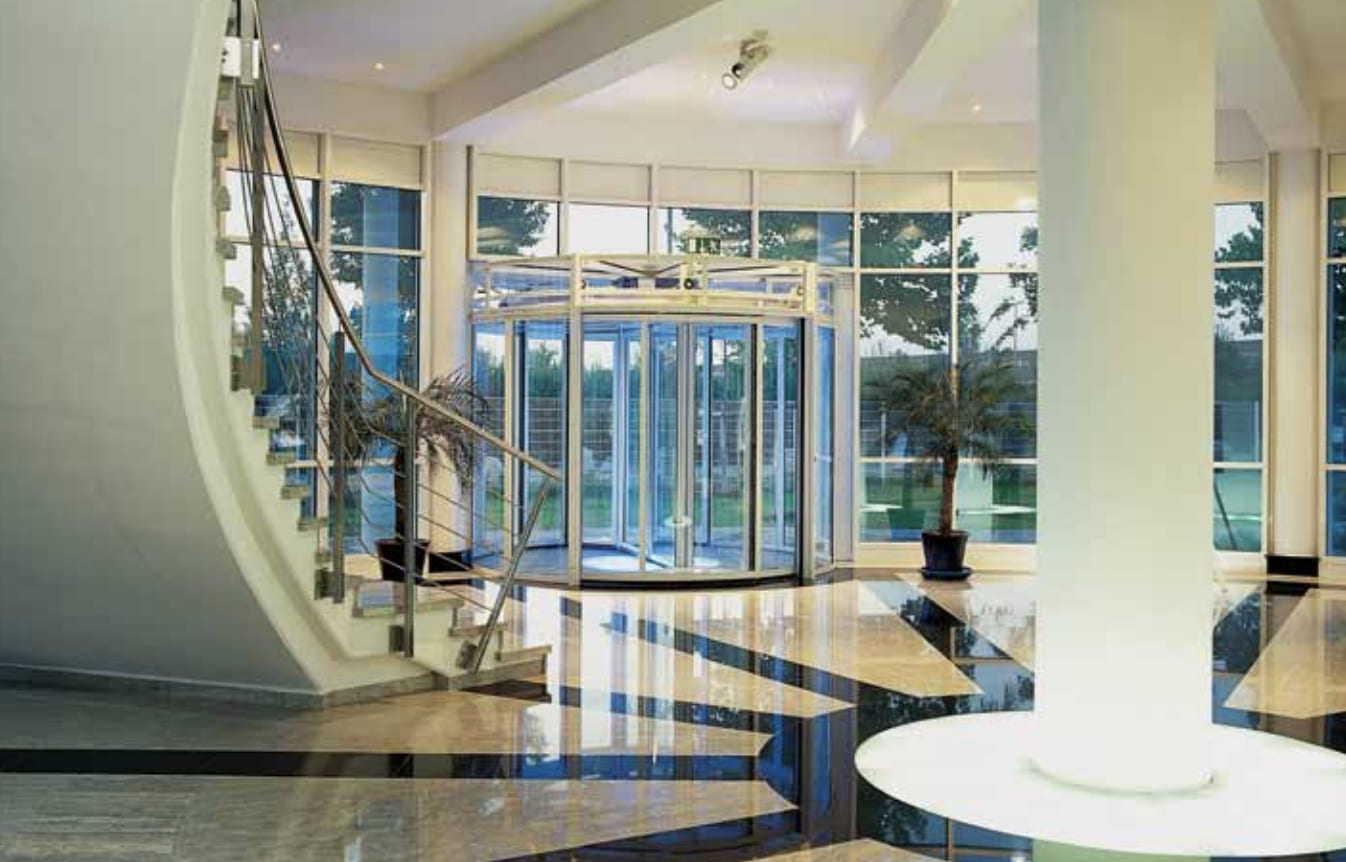

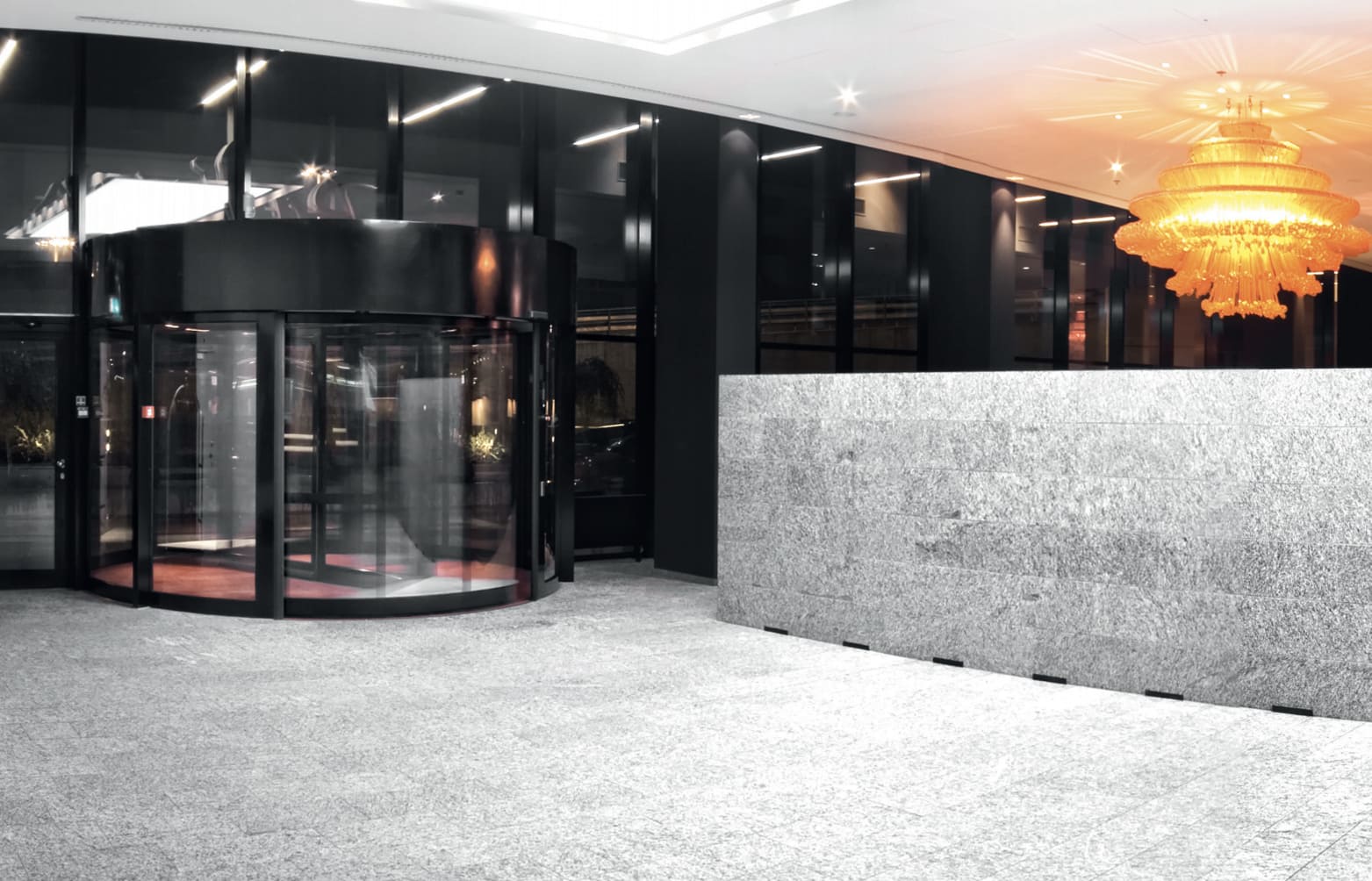

K21 - Two-wing revolving door

The K21 is a two-wing revolving door from our series ROTATION, which mainly comes with an automatic middle sliding door or optionally with swing doors. With show cases, a watertight roof structure or with an air-curtain do you have the choice on numerous options and design executions.

K21 IS THE NEW REVOLVING DOOR FROM BLASI: ECONOMICAL, RELIABLE AND SAFE

There are many reasons why you may decide on a BLASI revolving door, but by far your most important consideration is surely to find the best solution and the finest quality.

BLASI has been developing solutions for challenging, complex entrances for many years; our designs are characterised by uncompromising functionality, spectacular looks and exceptional standards of finish.

Thanks to our merger with the Swiss agta record Group, we can now deliver tried-and-tested control unit software to manage our door systems, which have themselves also been improved. The Swiss company record is one of a few automatic door vendors that designs and produces its own control and sensor units. They design all parts and components we need to our exact requirements, perfectly. Thus we are ideally positioned to continue the BLASI philosophy.

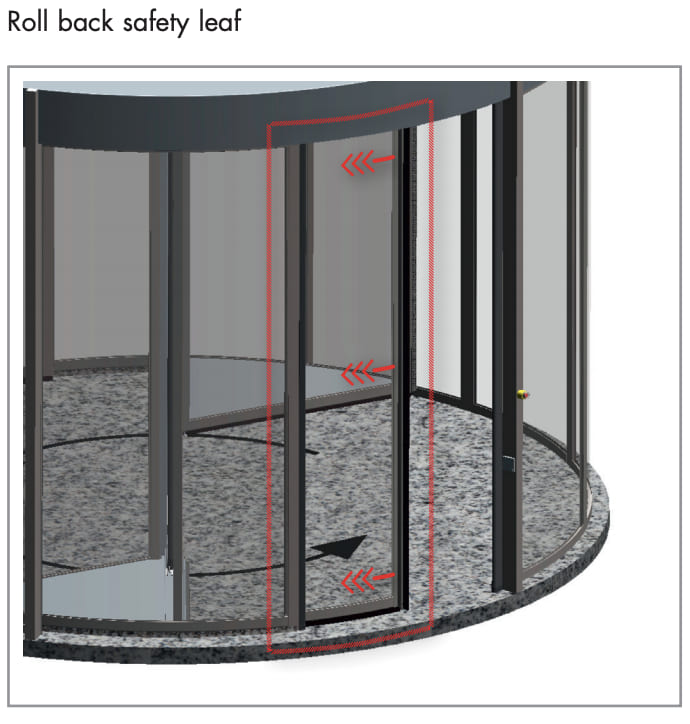

Besides the new control unit that combines multiple sensors to enhance comfort and safety, our unique roll back safety leaf and anti-crush guard, the latter unique to this model, both provide additional safety. The roll back safety leaf works by sliding against the direction of rotation, instantly reducing momentum and immediately stopping the door. This special leaf can be opened in an emergency, thus ensuring evacuation at all times; entrapment is impossible.

The new BLASI K21 revolving door possesses these, and many other benefits besides. We would be delighted to assist you with any project you may be planning. Should you have any questions, please do not hesitate to get in touch with us.

Applications


  • Airports, office buildings, shopping centres, hospitals, hotels etc.

  • Unhindered passage also during peak traffic times.

  • Climate control (temperature, draught, noise and dust); cost and energy saving.

  • Suitable as escape and rescue route doors, as all models feature an automatic sliding door for use in emergencies.

Benefits


  • Roll back safety leaf features cutting edge sensor technology and ensures highest levels of safety for all operations.

  • A wide range of design solutions available for every conceivable application.

  • Impressive eye-catching design; door show-cases can be used for marketing activities to enhance your corporate image.

  • User-friendly, intuitive operating devices also feature service displays; at any time, settings can be adjusted or functions re-configured.

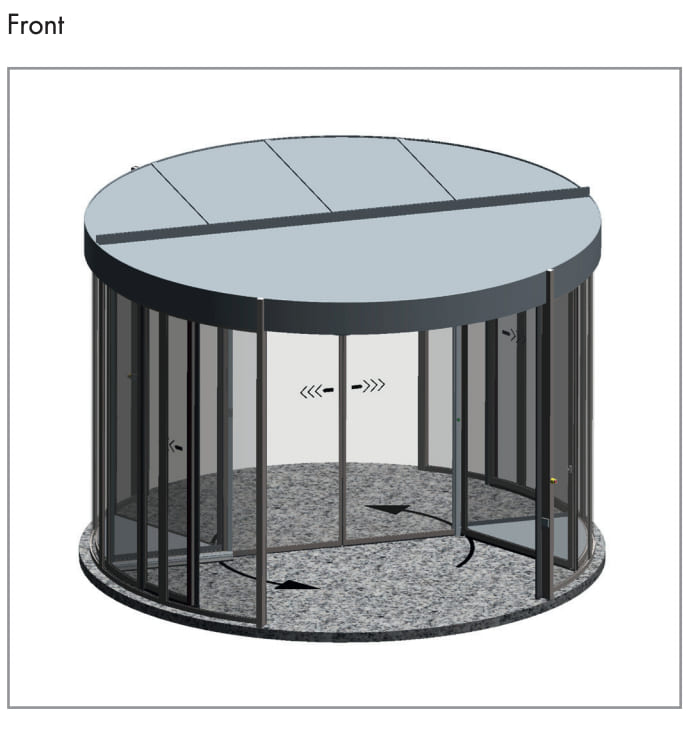

  • Rotating centrepiece consists of two curved glass segments in 10 mm laminated safety glass with integrated show case (doubles as a night lock), bi-parting automatic sliding door in 10 mm toughened safety glass (also suitable as standard sliding door). Centrepiece made from unique slim-line BLASI aluminium profiles.

  • Surface treatments in RAL powder coating or standard anodized finishes; also available in stainless steel, brass or bronze quality cladding.

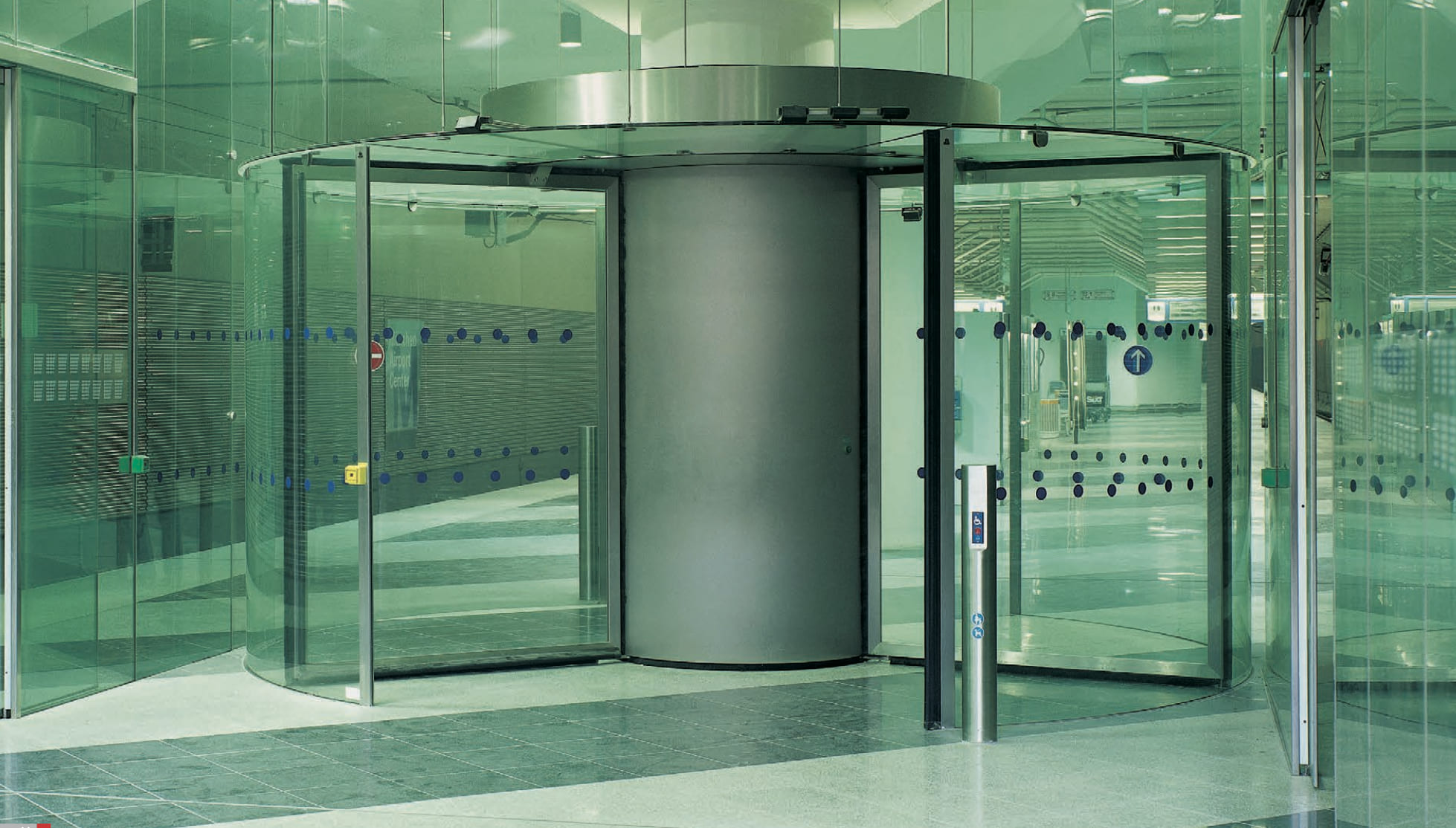

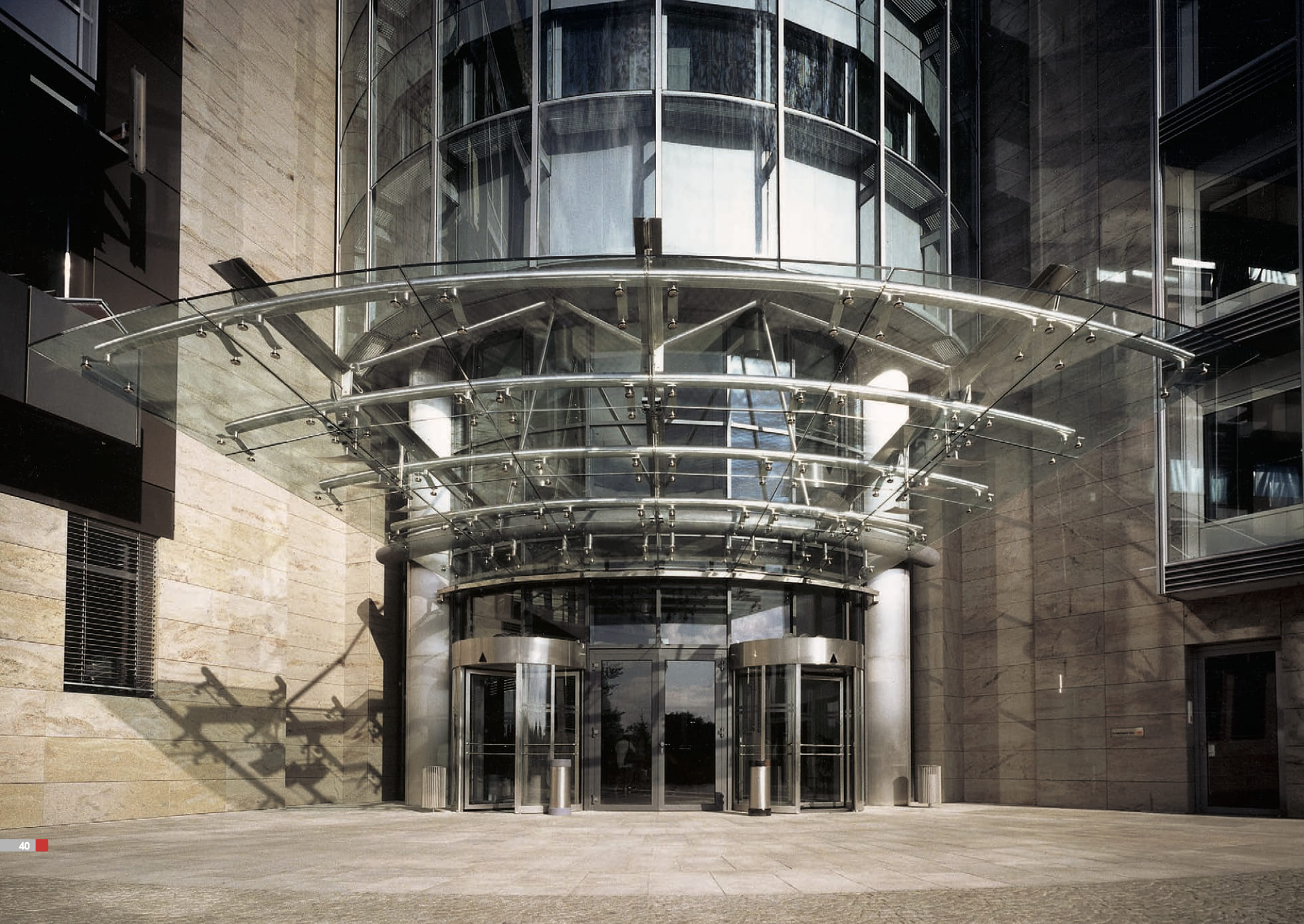

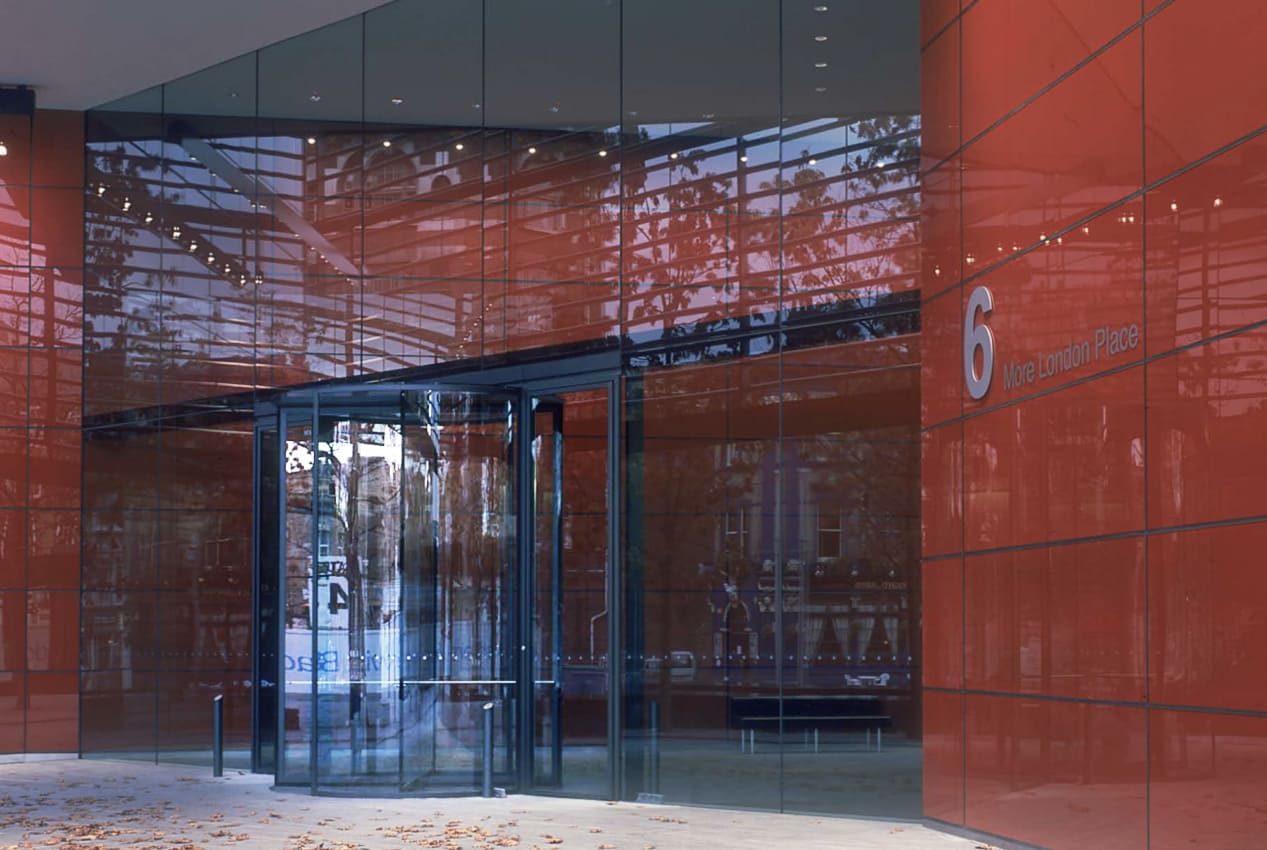

K31 - Three-leaf revolving door

Our three-leaf revolver K31 from our series ROTATION can be provided in many variations. As an in-ground operated revolver will you find also more information under the chapter INTEGRATION and as a security revolver under the chapter PROTECION.

The K31 three leaf revolving door is available with optional showcase (for diameters of 3100mm and up), night shutter and escape and rescue route function. You can choose between the tried-and-tested ceiling-fitted drive, and the invisible BLASI SU under floor drive, finished in RAL or anodised in any colour, or the all glass model, which has especially transparent aesthetics. For ease of use for wheelchair users or people with disabilities, the K31 can be fitted with a switchable control to reduce speed.

Three leaf automatic or manual revolving door which is available in various design options.

Executions with night shutters in manual or automatic version, with electric or mechanical locks, push bars in different variations or specific glass requirements that can be realized with BLASI.

Every 3-leaf automatic revolving door provides a very comfortable 120° wide compartment for any user and person.

The canopy structure is made of a solid and strong steel structure including thermal insulation and clad in aluminum plates along the pelmet and closed with a standard dust cover. The ceiling underside is closed with segmented aluminum plates that provide a solid and perfect flush view.

Highly engineered and reliable drive components ensure a smooth and safe operation at all times.
  • Three leaf revolving doors provide comfort and ideal for office buildings, airports, trainstations, hospitals, shopping centers, hotels and many more

  • 120° three leaf turnstile that provides comfortable space to walk through

  • Ground position provides high seal and reduces wind draft into building

  • Climate control (temperature, air condition wind-drafts) which reduces costs

  • Flexible design options by BLASI provide totally customized solutions for any entrance

  • Full glass option available for incredible transparency mainly for glass facades

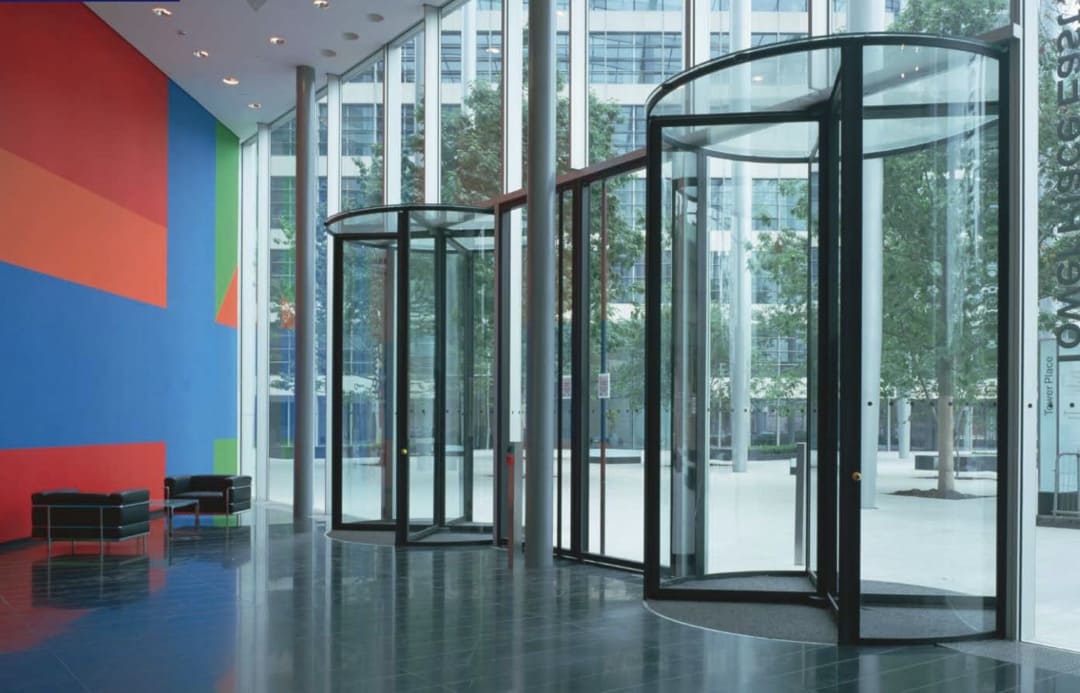

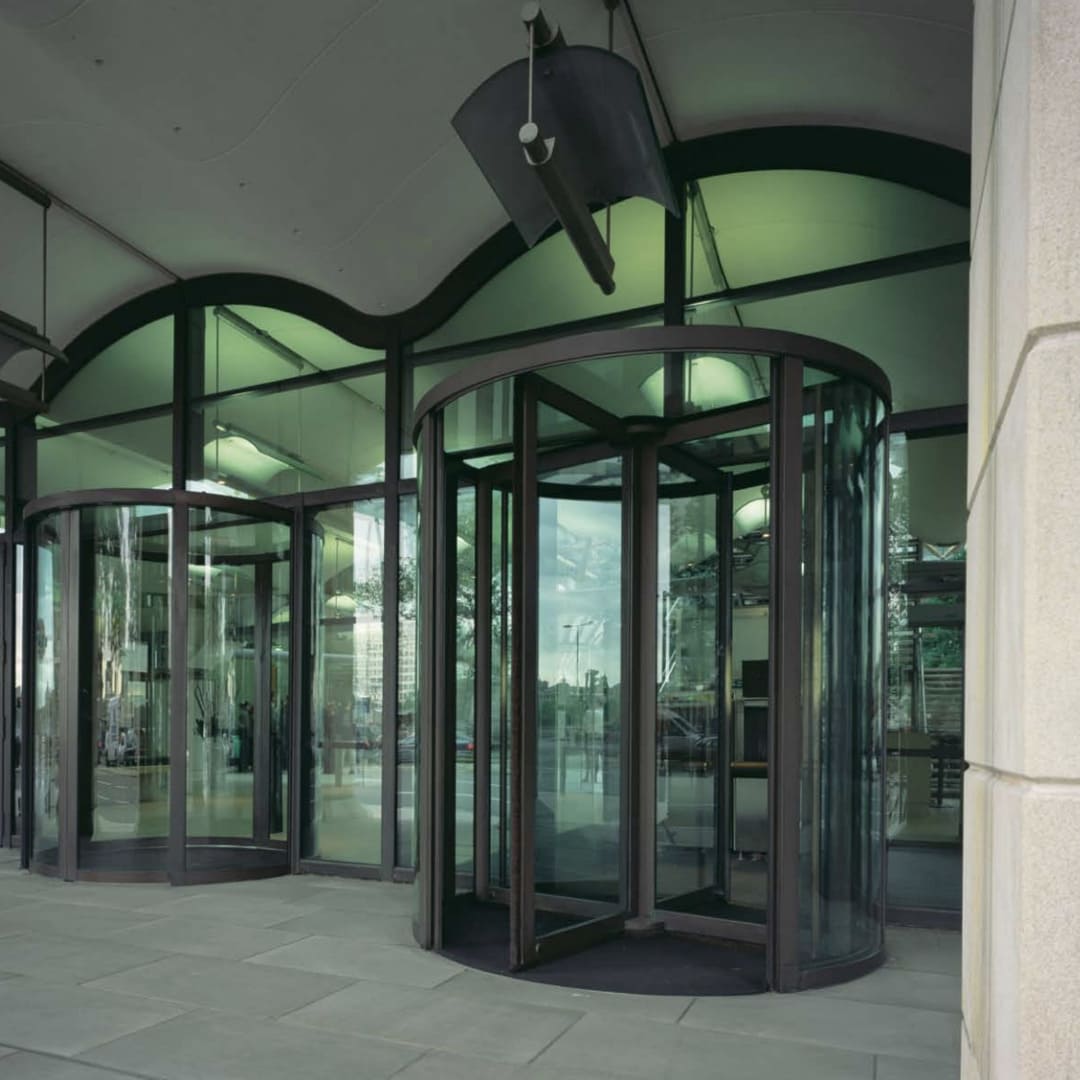

K41 - Four-leaf revolving door

The K41 four-leaf revolver from our series ROTATION can be provided in many variations. As an in-ground operated revolver will you find also more information under the chapter INTEGRATION and as a security revolver under the chapter PROTECTION.

The four leaf K41 shares the same technical specifications as the three-leaf model, but has a bigger entrance and a smaller round drum-shaped segment.
Four leaf automatic or manual revolving door which is available in various design options.

Executions with night shutters in manual or automatic version, with electric or mechanical locks, push bars in different variations or specific glass requirements that can be realized with BLASI.

Every 4-leaf automatic revolving door turns in anticlockwise direction and is always equipped with the latest safety features to provide safe and reliable function.

The canopy structure is made of a solid and strong steel structure including thermal insulation and clad in aluminum plates along the pelmet and closed with a standard dust cover. The ceiling underside is closed with segmented aluminum plates that provide a solid and perfect flush view.

Highly engineered and reliable drive components ensure a smooth and safe operation at all times.

  • Four leaf revolving doors provide comfort ideal for office buildings, airports, train-stations, hospitals, shopping centers, hotels and many more
  • Quarter point position provides high seal and reduces wind draft into building

  • Climate control (temperature, air condition wind-drafts) which reduces costs

  • Flexible design options by BLASI provide totally customized solutions for any entrance

  • Full glass option available for incredible transparency mainly for glass facades
